APOLLO PRINT

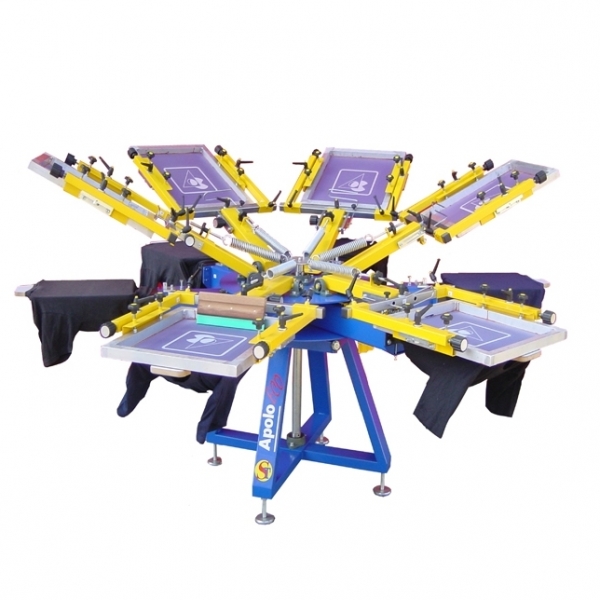

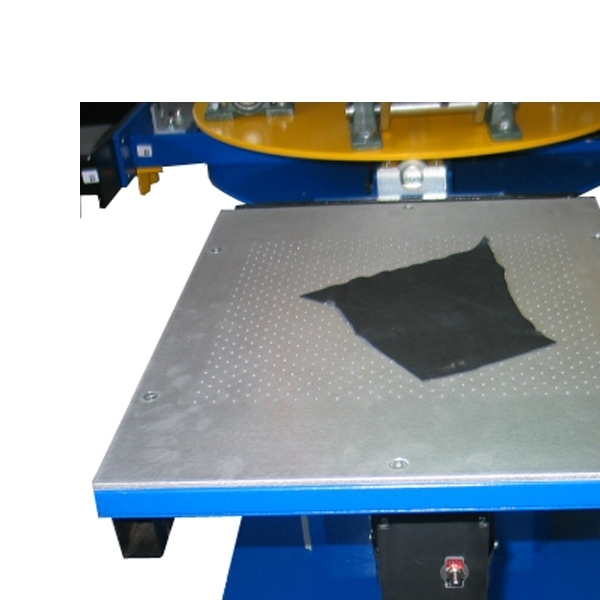

The APOLO PRINT is a textile printing manual carousel equipped with micro printing registers. The APOLO has the capacity to install several special pallets such as : umbrellas; sleeves; jackets; caps; vacuum pallet and others.

  • All heads can be lower at same time so more users can work together;
  • Available between in 4,6,8,10 and 12 colors configuration;
  • Palettes and screens can rotate separately;

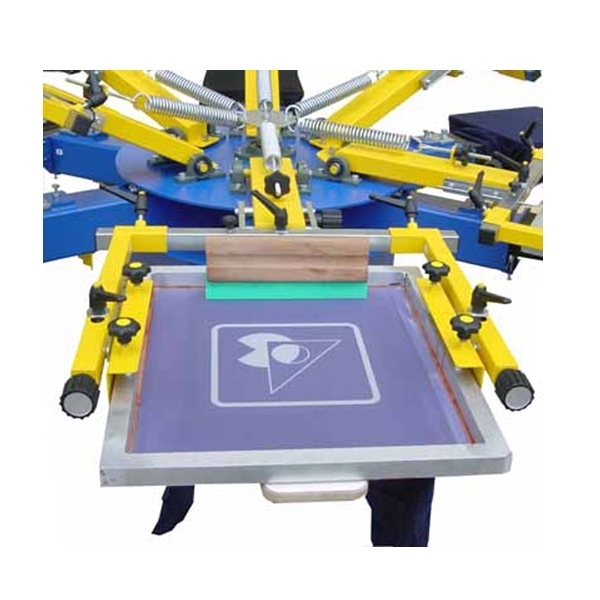

  • Individual micro register in each color;
  • Possibility to print with different screen sizes;
  • Individual adjust from screen angle;
  • Possibility to adjust pallet in length direction;
  • Fast and easy assembly from screens and pallets;
  • Lateral and précised fixation from the screen;
  • Solid mechanics construction;

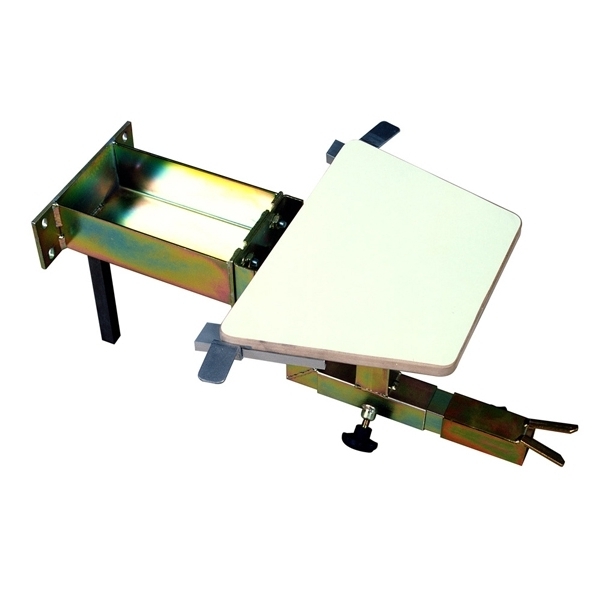

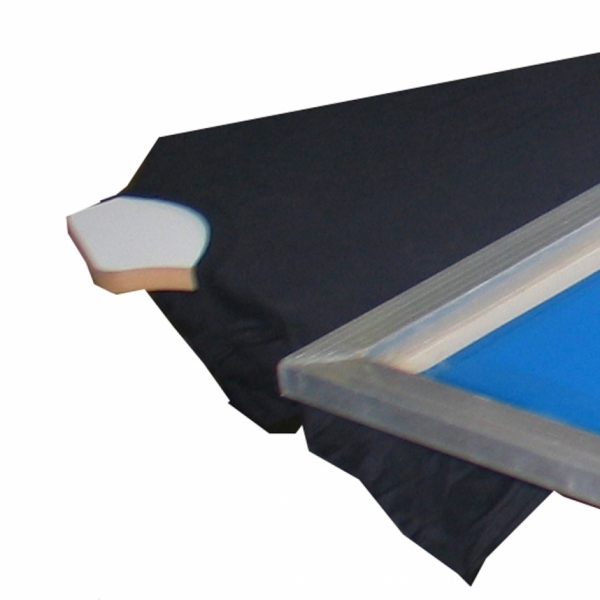

  • Available accessories to print: caps, umbrellas, jackets, transfers, sleeves, etc...

    • APOLO PRINTUnitsAP - 4AP - 6AP - 8AP - 10AP - 12
    Colors quantity   4 6 8 10 12
    Pallets quantity   4 6 8 10 12
    Maximum screen size cm 59x80 59x80 59x80 59x80 59x80
    Size from alumium pallet Cm 40x50 40x50 40x50 40x50 40x50
    Diameter Cm 273 280 310 340 360
    Height from working platform cm 90 90 90 90 90
    Weight Kg 200 300 400 500 600
