TEXWORK DOUBLE

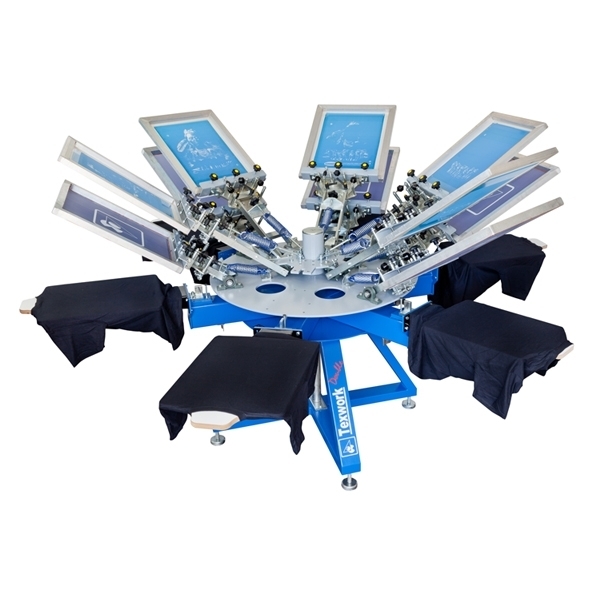

The TEXWORK DOUBLE is a textile printing manual carousel equipped with double color deck. The TEXWORK DOUBLE has the capacity to install several special pallets such as : umbrellas; sleeves; jackets; caps; vacuum pallet and others. The TEXWORK DOUBLE is the equipped with micro registers in each color.

  • Equipped with double color deck for maximum colors in the less space possible;
  • Possibility to adjust raising force from screens without tools;
  • Palettes and screens can rotate separately;

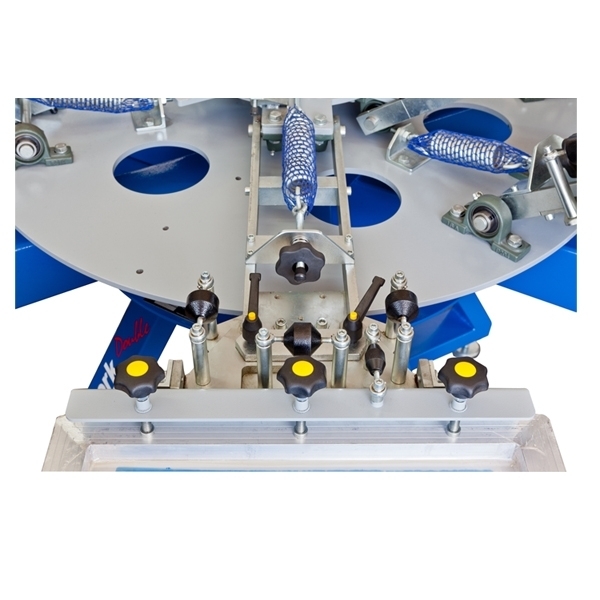

  • Individual micro register in each color;
  • Possibility to print with different screen sizes;
  • Individual adjust from screen angle;
  • Possibility to adjust pallet length direction;
  • Super stable pallet arm;
  • Fast and easy assembly from screens and pallets;
  • Screen clamps lateral as option;
  • Solid mechanics construction;
  • Available accessories to print: caps, umbrellas, jackets, transfers, sleeves, etc...

    • TEXWORK DOUBLEUnitsTW D 10/4TW D 10/6
    Colors quantity   10 10
    Pallets quantity   4 6
    Maximum screen size cm 46x75 46x75
    Minimum screen size when using side clamp cm 35x70 35x70
    Height cm 160 160
    Height from working platform cm 90 90
    Weight Kg 500 550
